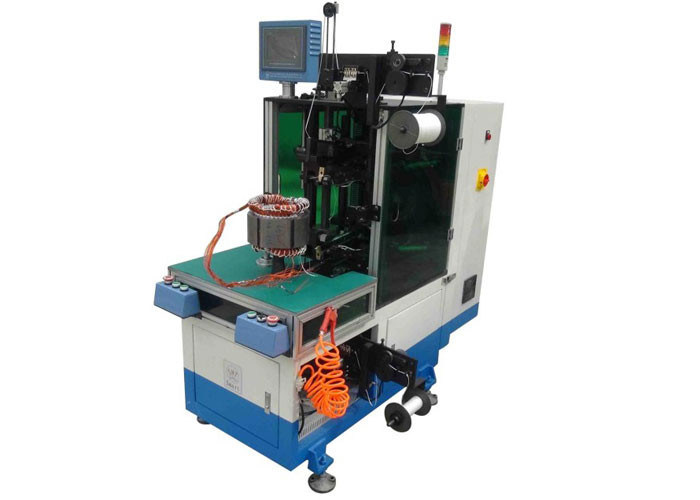

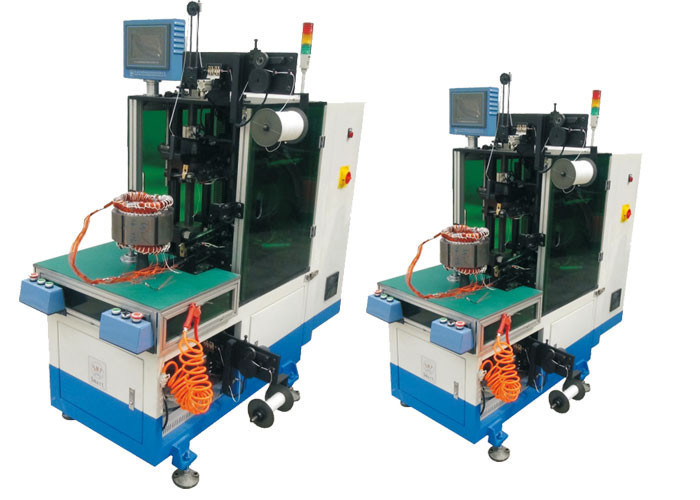

Automatic Servo Control Double Sides Lacing Stator Lacing Machine with Programmable Lacing Modes

Mindestbestellmenge:	1 Set
Preis:	Verhandlungsfähig
Standardverpackung:	Holzkastenverpackung
Lieferfrist:	46 - 68 Tage
Zahlungsmethode:	T/t, l/c
Lieferkapazität:	1 Stück / 46 - 68 Tage

Detailinformationen

Beschreibung des Produkts

Detailinformationen

Herkunftsort

CHINA

Markenname

Zertifizierung

ISO / SGS Audit

Modellnummer

SMT - BZ190

Name:

Automatische Servo-Doppelseitenmotor-Statorspule dreht Schnürmaschine SMT - BZ190

Modell:

SMT-BZ190

Ständer Identifikation.:

Φ110~ Φ210mm

Ständer O.D.:

≤Φ300mm

Stapelhöhe:

≤50mm

Stromversorgung:

380V/50/60Hz 3.5Kw

Slot-Nummer:

8~48 Steckplätze

Paket:

1-lagiges Holzgehäuse

Hervorheben:

Automatic Servo Control Stator Lacing Machine

Double Sides Lacing Stator Lacing Machine

Programmable Lacing Modes Stator Lacing Machine

Beschreibung des Produkts

Automatic Servo Type Stator Coil Single Lacing Machine

Automatic Servo Double Sides Motor Stator Coil Turns Lacing Machine SMT - BZ190

The horizontal single side stator winding lacing machine adopts industrial PLC, human-computer interface and horizontal frame-structure design. The servo system machine accurately controls the lacing action. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable. This machine is suitable for large stators with high winding over-hang. The movable tooling allows for fast stator loading and unloading, effectively reducing labor requirements.

Technical Specifications

Model	BZ190
Stack height	60-180mm
Stator I.D	110-210mm
Stator O.D	≤ 300mm
Height of Overhang	≤50mm
Lacing mode	Slot by slot / interval slot/Fancy lacing
Lacing speed	0.8s/s
Power supply	380v/50/60Hz 3.5kw
Machine weight	About 900kg
Machine dimension (LxWxH)	1500x 650x 1800mm

Key Advantages

Servo driven system with CNC control and HIM programming
Servo-controlled indexing for multiple lacing modes (slot, interval, fancy)
Servo-controlled main spindle with adjustable rotation speed
Dual servo-driven needles for simultaneous upper/lower coil lacing
Automatic thread feeding and cutting (no knots required)
Quick-change tooling for stator stack lengths of 50-130mm
Adjustable lacing tension
High production capacity (≤1s/slot)
Minimal copper wire/enamel damage
High qualification rates (≥98.5% primary, ≥99.5% after rework)
Safety grating protection system
Two-hand start operation for operator safety

Machine Characteristics

Industrial PLC with human-computer interface and horizontal frame-structure design
Programmable lacing methods (slot-by-slot, interval, fancy)
Optimized for large stators with high winding over-hang
Movable tooling for fast loading/unloading and reduced labor

OEM/ODM Capabilities

We specialize in motor manufacturing equipment including automatic winding machines, lacing machines, inserting machines, shaping machines, and forming machines. Incorporating advanced international technology, we enhance factory automation with stable quality and comprehensive customer service. Our professional, efficient approach meets diverse customer requirements for motor production solutions.

Production Line Services

SMT provides comprehensive technical consulting and turn-key project services for AC, DC, and BLDC motor manufacturing. Our services include cost evaluation, manufacturing know-how, staff training, and complete production solutions. Automatic Servo Control Double Sides Lacing Stator Lacing Machine with Programmable Lacing Modes 0

About Suzhou Smart Motor Equipment Manufacturing Co.,Ltd

As a leading high-tech enterprise in China, we specialize in designing, producing and selling motor manufacturing equipment. With approximately 150 employees (including 30+ engineers), 20,000 square meters of facilities, and advanced production/test equipment, we deliver innovative solutions for the motor manufacturing industry.
